BA4560N

BA4560N ,BA4560

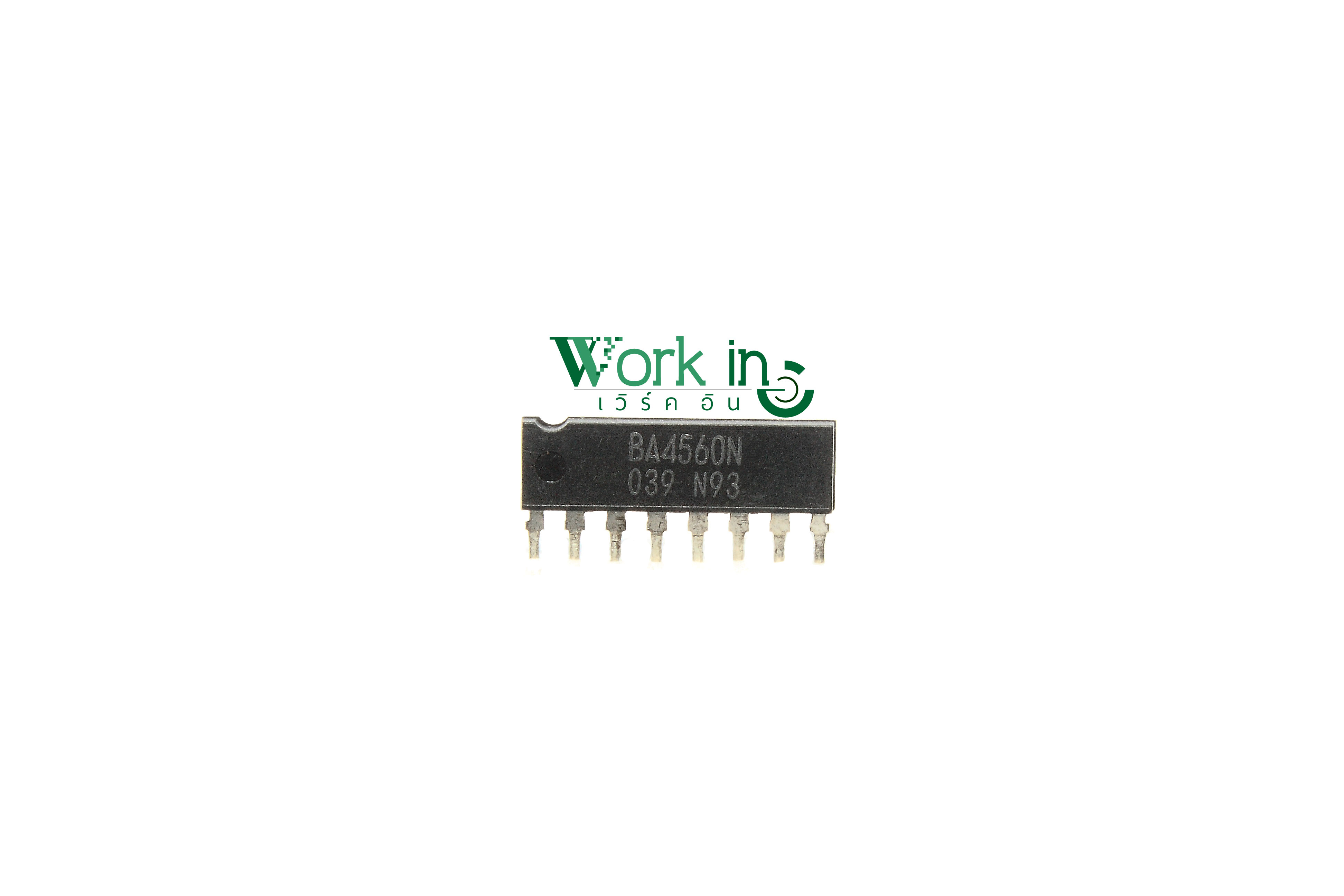

The  BA4560,  BA4560N  are  dual  operational  amplifiers  which  achieve  approximately  twice  the  highoutput current of the BA4558, as well as featuring a higher slew rate of 4V / μs, a gain band width of 10MHz, and animproved frequency characteristic. The following packages are available: 8-pin DIP (BA4560),  8-pin SIP (BA4560N).

Applications

• Active filters
• Audio amplifiers
• VCOs
• Other electronic circuits

Features

1. Built-in output short-circuit protection circuit.
2. Internal phase correction.
3. No latch-up.
4. Wide range of common-mode modes and differentialvoltage.
5. High gain and low noise

Absolute maximum ratings (Ta = 25°C)

• Power supply voltage : ± 18 V
• Power dissipation : 900 mW
• Differential input voltage :  ± Vcc
• Common-mode input voltage : -Vcc , Vcc
• Operating temperature  : – 40 ~ + 85  °C
• Storage temperature : – 55 ~ + 125 °C
