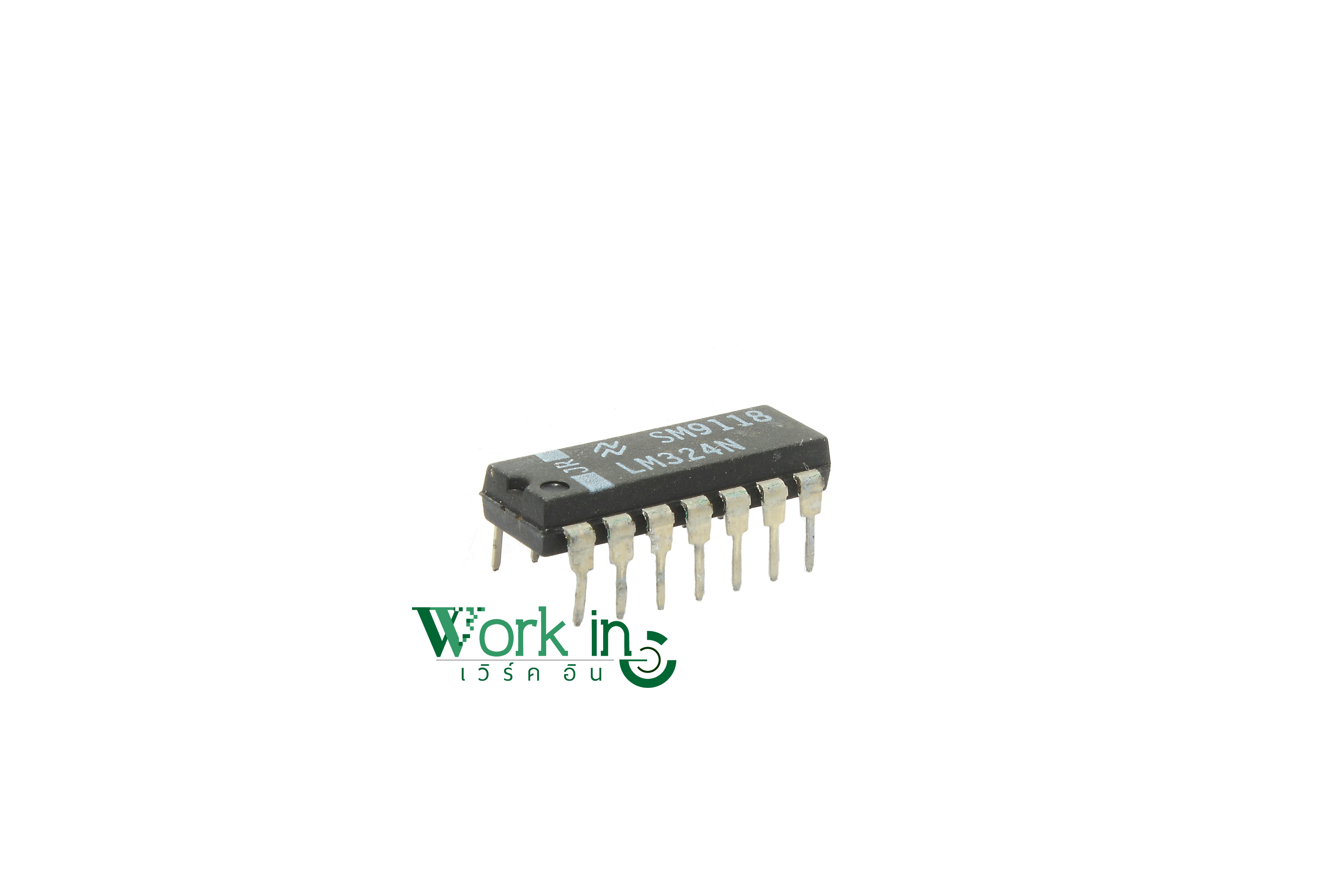

LM324 LM324N

LM324 LM324N
LOW POWER QUAD OPERATIONAL AMPLIFIERS
WIDE GAIN BANDWIDTH : 1.3MHz.
INPUT COMMON-MODE VOLTAGE RANGEINCLUDES GROUND.
LARGE VOLTAGE GAIN : 100dB.
VERY LOW SUPPLY CURRENT/AMPLI : 375μA.
LOW INPUT BIAS CURRENT : 20nA.
LOW INPUT OFFSET VOLTAGE : 5mV max.(for more accurate applications, use the equivalent partsLM124A-LM224A-LM324A which feature 3mV max).
LOW INPUT OFFSET CURRENT : 2nA.
WIDE POWER SUPPLY RANGE :SINGLE SUPPLY : +3V TO +30VDUAL SUPPLIES :±1.5V TO±15V
หมายเหตุ ของแท้  สินค้าเป็นแบบ New Old Stock (NOS) คือผลิตมาหลายปีแล้ว
