2901N NJM2901

    Description

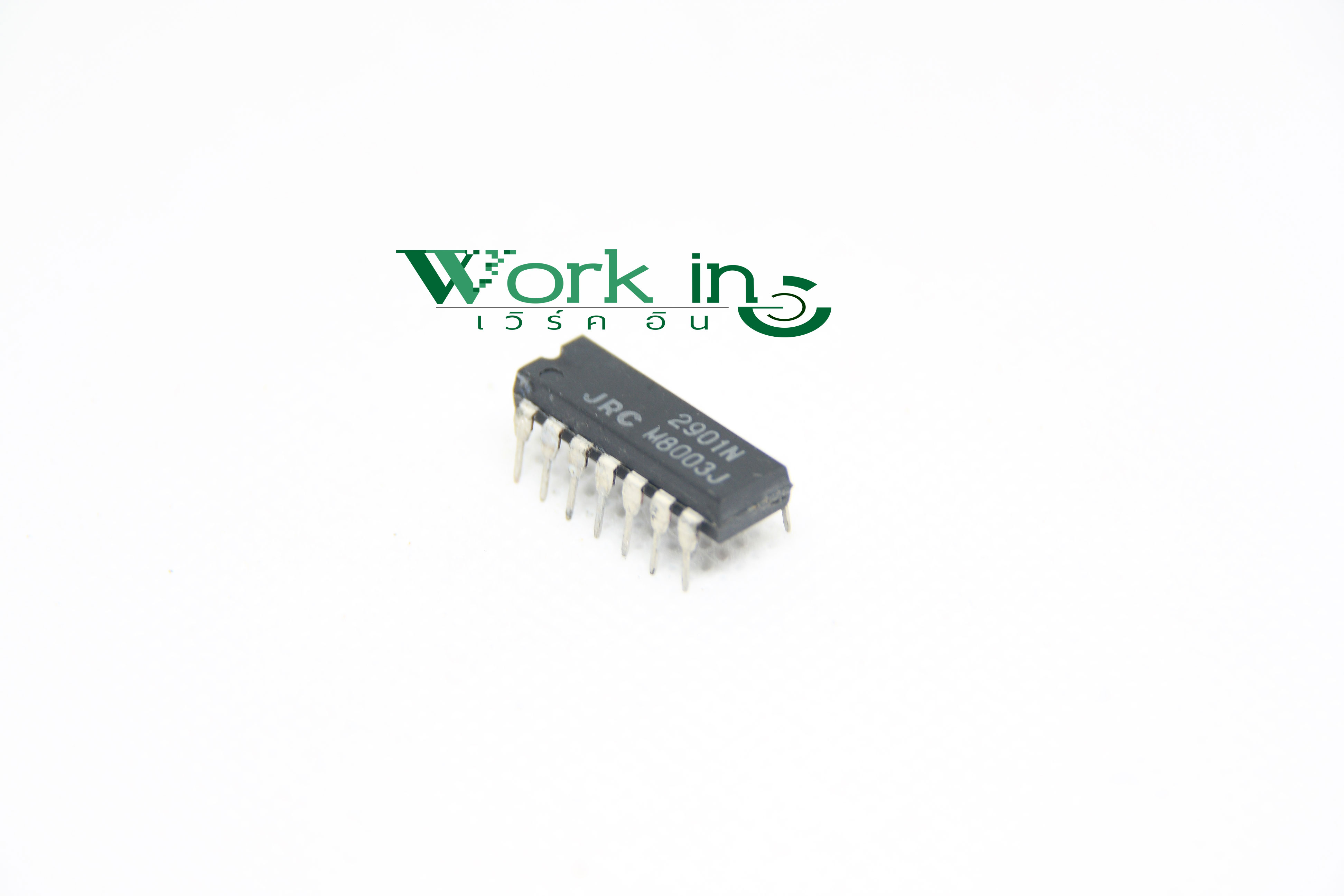

■ Part Number NJM2901N, 2901N
■ Package  DIP14
■ Operating Voltage ( +2V~+36V )
■ Supply Voltage V+ 36 (± 18) V
■ Differential Input Voltage VID 36 V
■ Input Voltage VIN -0.3~+36 V
■ Power Dissipation PD ( DIP14 ) 570 mW ( DMP14 ) 300 mW ( SSOP14 ) 300 mW
■ Operating Temperature Range Topr -40~+85 ˚C
■ Storage Temperature Range Tstg -50~+125 ˚C
● Single Supply Operation
● Open Collector Output
● Bipolar Technology



GENERAL DESCRIPTION
    These devices offer higher frequency operation and faster
switching than can be had from internally compensated quad op
amps.Indeed for single-supply applications,the Darlington PNP
input stage allows them to compare voltages that include
ground.The two-stage common-emitter output circuit provides
gain and output sink capacity of 6mA at an output level of
400mV.The output collector is left open,permitting the designer
to drive devices in the range of 2V to 36V.
